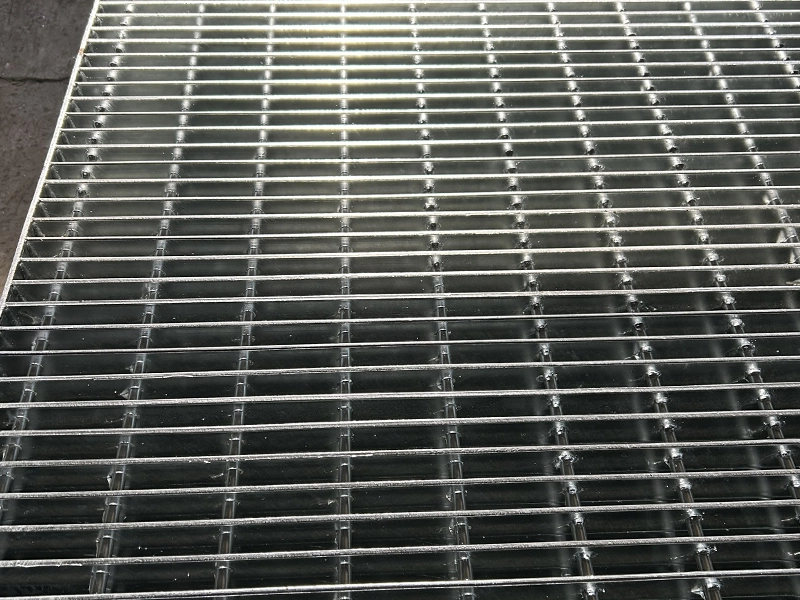

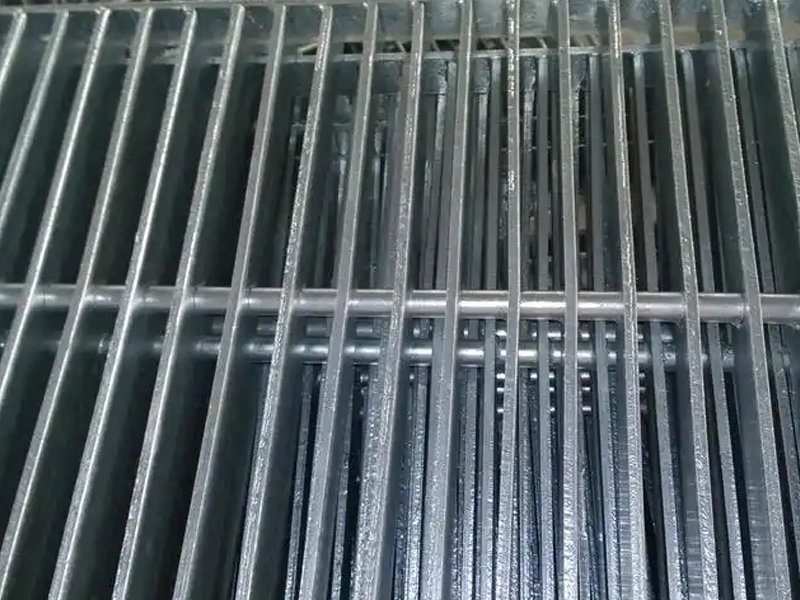

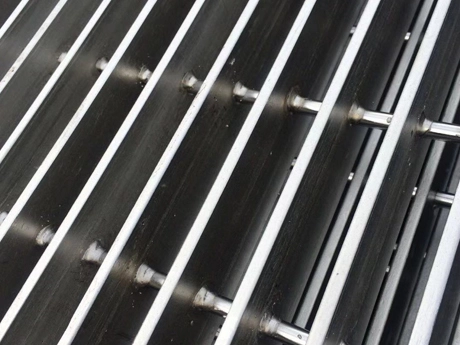

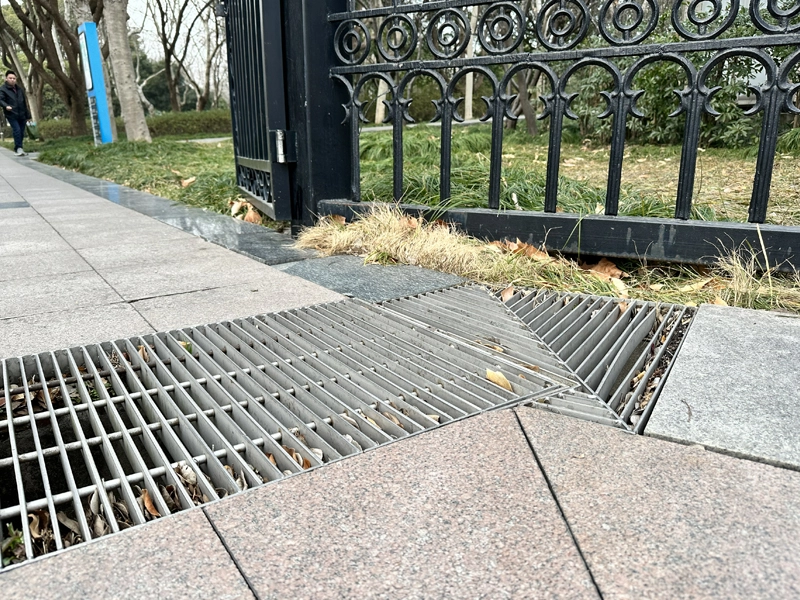

Kisi-kisi baja yang dibor umumnya memiliki lubang di tengah ketinggian batang penahan beban, menembus batang melintang bundar, dan dilas dengan kuat ke baja datar penahan beban.
Jenis kisi-kisi ini sering digunakan pada kisi-kisi baja tugas berat. Dibandingkan dengan kisi-kisi baja las biasa, permukaan kisi-kisi baja berlubang lebih halus.
| Ukuran Batang Penahan | Ukuran Palang Melintang | Jarak Antar Batang Penahan (Pusat ke Pusat) | Jarak Antar Palang (Dari Tengah ke Tengah) |
| 40 x 5 mm | Ø8 mm | 25 mm, 30 mm, 40 mm, 50 mm | 50mm, 100mm |
| 45 x 5 mm | Ø8 mm | 25 mm, 30 mm, 40mm, 50 mm | 50mm, 100mm |
| 50 x 5 mm | Ø8 mm | 25 mm, 30 mm, 40mm, 50 mm | 50mm, 100mm |
| 60 x 5 mm | Ø8 mm | 25 mm, 30 mm, 40mm, 50 mm | 50mm, 100mm |
| 75 x 5 mm | Ø8 mm | 25 mm, 30 mm, 40mm, 50 mm | 50mm, 100mm |
| 100 x 5 mm | Ø8 mm | 25 mm, 30 mm, 40mm, 50 mm | 50mm, 100mm |
| 120 x 5 mm | Ø8 mm | 25 mm, 30 mm, 40mm, 50 mm | 50mm, 100mm |
| 40 x 6 mm | Ø8 mm | 25 mm, 30 mm, 40mm, 50 mm | 50mm, 100mm |
| 45 x 6 mm | Ø8 mm | 25 mm, 30 mm, 40mm, 50 mm | 50mm, 100mm |
| 50 x 6 mm | Ø8 mm | 25 mm, 30 mm, 40mm, 50 mm | 50mm, 100mm |
| 60 x 6 mm | Ø8 mm | 25 mm, 30 mm, 40mm, 50 mm | 50mm, 100mm |
| 75 x 6 mm | Ø8 mm | 25 mm, 30 mm, 40mm, 50 mm | 50mm, 100mm |
| 100 x 6 mm | Ø8 mm | 25 mm, 30 mm, 40mm, 50 mm | 50mm, 100mm |
| 120 x 6 mm | Ø8 mm | 25 mm, 30 mm, 40mm, 50 mm | 50mm, 100mm |
| 60 x 9 mm | Ø10 mm | 25 mm, 30 mm, 40mm, 50 mm | 50mm, 100mm |
| 75 x 9 mm | Ø10 mm | 25 mm, 30 mm, 40mm, 50 mm | 50mm, 100mm |
| 100 x 9 mm | Ø10 mm | 25 mm, 30 mm, 40mm, 50 mm | 50mm, 100mm |
| 120 x 9 mm | Ø10 mm | 25 mm, 30 mm, 40mm, 50 mm | 50mm, 100mm |
| 150 x 9 mm | Ø10 mm | 25 mm, 30 mm, 40mm, 50 mm | 50mm, 100mm |
| 200 x 9 mm | Ø10 mm | 25 mm, 30 mm, 40mm, 50 mm | 50mm, 100mm |
Kisi-kisi bajalebih terintegrasi
Mencegah keausan palang silang yang bengkok secara efektif.
Kisi-kisi baja secara keseluruhan lebih indah.
